| Frame | SMOOTHWALL™ Carbon | Penalty Box 2.0 Storage | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel | SMOOTHWALL™ Carbon Rear Triangle |
| Fork | RockShox Lyrik Select 150mm | Charger RC Damper | 27.5 = 37mm Offset | 29 = 42mm Offset |
| Rear Shock | Fox Float X Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ |
| Remote System | |
| Rear Deraileur | Shimano XT |
| Front Deraileur | |
| Shifter(s) | Shimano XT |
| Crankset | Race Face Aeffect Cinch | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm |
| Bottom Bracket | Shimano SM-BBMT500 |
| Chain | Shimano M6100 |
| Cassette | Shimano SLX 10-51T 12spd |
| Brakes | Shimano MT6120 4 Piston | Metal Pads |
| Handlebar | Rocky Mountain AM | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
| Stem | Rocky Mountain 35 AM | 0° Rise | All Sizes = 40mm |
| Seatpost | X Fusion Manic Composite 30.9mm | XS = 125mm | SM = 150mm | MD = 170mm | LG - XL = 200mm |
| Saddle | WTB Volt Race 142 | Cromoly rails |
| Headset | FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Hub Front | Novatec D791SB Sealed Boost 15mm |
| Hub Rear | DT Swiss 370 Boost 148mm | 18T Star-Ratchet |
| Rims | WTB KOM Team i30 TCS 2.0 | 28H | Tubeless Set Up | Sealant Incl |
| Tires | Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready | Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready | Tubeless Set Up | Sealant Incl |
| Weight (Approx lbs) | 29.9 LBS|13.5 KGS |

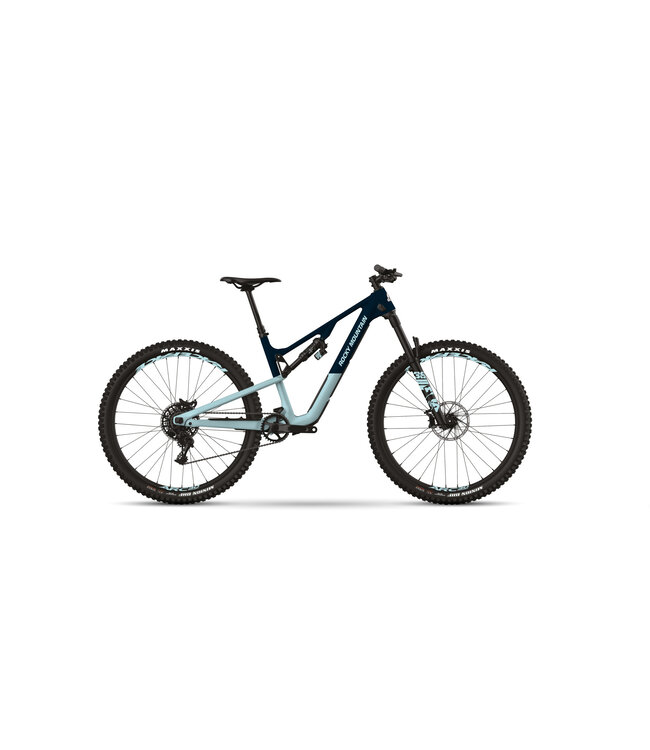

The Instinct Carbon is at home on technical trails, but still allows you to push the distance and crush the climbs. Our most versatile platform just got more adventure-ready with updated the frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Meet the Instinct Carbon.
