| Frame | SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle |
| Fork | Fox 36 Float EVOL GRIP2 Factory Series 150mm | 27.5 = 37mm Offset | 29 = 44mm Offset |
| Rear Shock | Fox Float X Factory | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ |
| Remote System | |
| Rear Deraileur | Shimano XTR |
| Front Deraileur | |
| Shifter(s) | Shimano XTR |
| Crankset | Race Face Next SL G5 Cinch | 32T | 30mm Spindle | Crankarm Length: All Sizes = 170mm |
| Bottom Bracket | Race Face BB92 30mm |
| Chain | Shimano XTR 12s |
| Cassette | Shimano XTR 12s 10-51T |
| Brakes | Shimano XTR Trail 4 Piston | IceTec Metal Pads |
| Handlebar | Race Face Next R | 780mm Width | 20mm Rise | 8° Backsweep | 5° Upsweep | 35mm Clamp |
| Stem | Rocky Mountain 35 CNC | 0° Rise | All Sizes = 40mm |
| Seatpost | Fox Transfer Factory Series 30.9mm | XS = 125mm | SM = 150mm | MD = 175mm | LG - XL = 200mm |
| Saddle | WTB Volt Race 142 |
| Headset | FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
| Hub Front | DT Swiss 350 Boost 15mm |
| Hub Rear | DT Swiss 350 Boost 148mm | 36T Star-Ratchet |
| Rims | Race Face ARC Carbon 31 | 28H / Tubeless Ready - Tape / Valves Incl |
| Tires | F: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready // |
| Weight (Approx lbs) | 29.8 LBS|13.5 KGS |

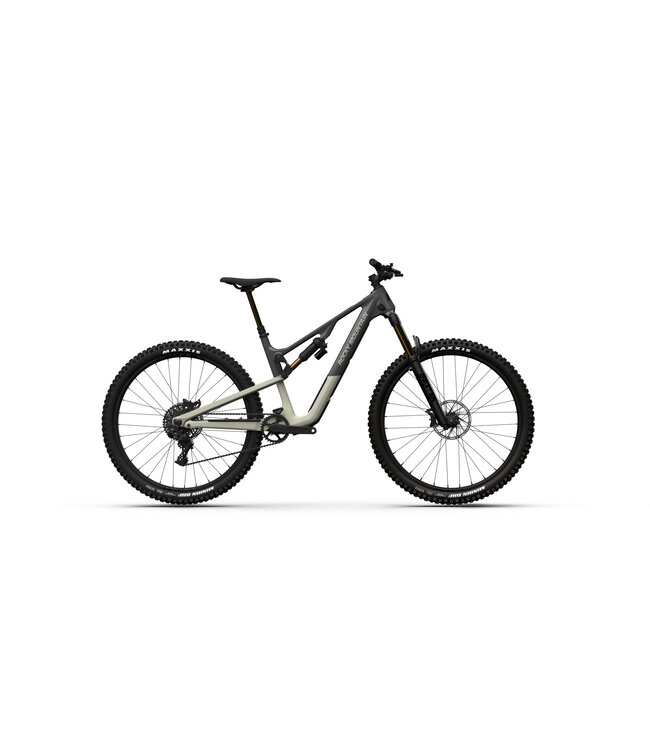

The Instinct Carbon is at home on technical trails, but still allows you to push the distance and crush the climbs. Our most versatile platform just got more adventure-ready with updated the frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Meet the Instinct Carbon.
